Traction Gantry Frame Type Home Villa Elevator

Equipped with a permanent magnet synchronous gearless motor for superior performance, energy efficiency, and eco-friendliness.
Guide rails are symmetrically placed on both sides of the car for balanced load distribution, enhancing structural stability and prolonging elevator lifespan.
Offers both steel belt and steel wire rope options to accommodate diverse customer requirements.
Compact and space-saving layout, ideal for villa and residential installations without the need for an external machine room.
Features a one-piece control cabinet with clean design and streamlined installation.
Built-in ARD system ensures low-speed leveling and safe door opening in case of sudden power failure, improving passenger safety.

Traction Gantry Frame Type Home Villa Elevator

Product Introduction

Our traction type home elevator adopts a modern permanent magnet synchronous gearless motor, delivering superior performance, energy efficiency, and eco-friendly operation. The electric traction drive system features a balanced structure with dual-side guide rails, extending the elevator’s service life while enhancing ride comfort and safety.

Designed for residential and villa applications, this traction lift requires no machine room, offering a space-saving solution with a clean and minimalist design. The optional steel belt or wire rope drive meets different architectural requirements. An integrated control cabinet and built-in ARD (Automatic Rescue Device) ensure low-speed, flat-floor leveling in case of power failure, providing passengers with peace of mind.

Unique features make our products unique

Backpack Frame with Steel Belt Drive

Our traction lift features a space-saving backpack frame design paired with a durable steel belt drive system. This ensures quiet, stable operation and is compatible with both hydraulic and electric traction elevator systems—ideal for residential use.

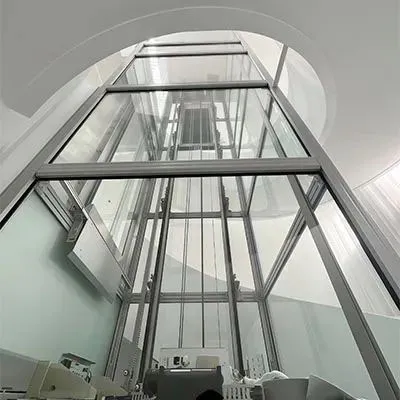

Panoramic Sightseeing Shaft with Hidden Cable Layout

Enjoy a modern electric traction elevator with a panoramic sightseeing shaft that hides all cables within the structure. It offers full visibility and enhances the architectural aesthetics of your home or villa.

Luxury Interior with Smart Technology Integration

This residential elevator integrates intelligent features including a starry ceiling, LCD touchscreen panel, ambient lighting, and automatic smart door—combining elegance with advanced traction elevator control for a superior ride experience.

Unique features make our products unique

Go for customization

Get the latest product information

PDF Sample Download

Our products can be installed in the following five building structures

The building has a special elevator shaft Elevators can be installed directiy in dedicated wellways

Suitable space in the middle of the staircase Install elevators in the middie of the shaft

A hoilow half or room Instalation of elevators in has orrooms

The elevator with suitable space in the building can only be installed indoors. Installation of elevators by opaning appropriate holes in the floor and installing well paths

There is no suitable space in the building If permitted,install elevators with wells saliva in each room

Tips

On occasions②③④⑤ the installation of an elevator shaft specifically designed is required. Customers can utilize metal frames or concrete, etc. to build the shaft in advance. We recommend that customers opt for a special frame shaft for villa elevators.

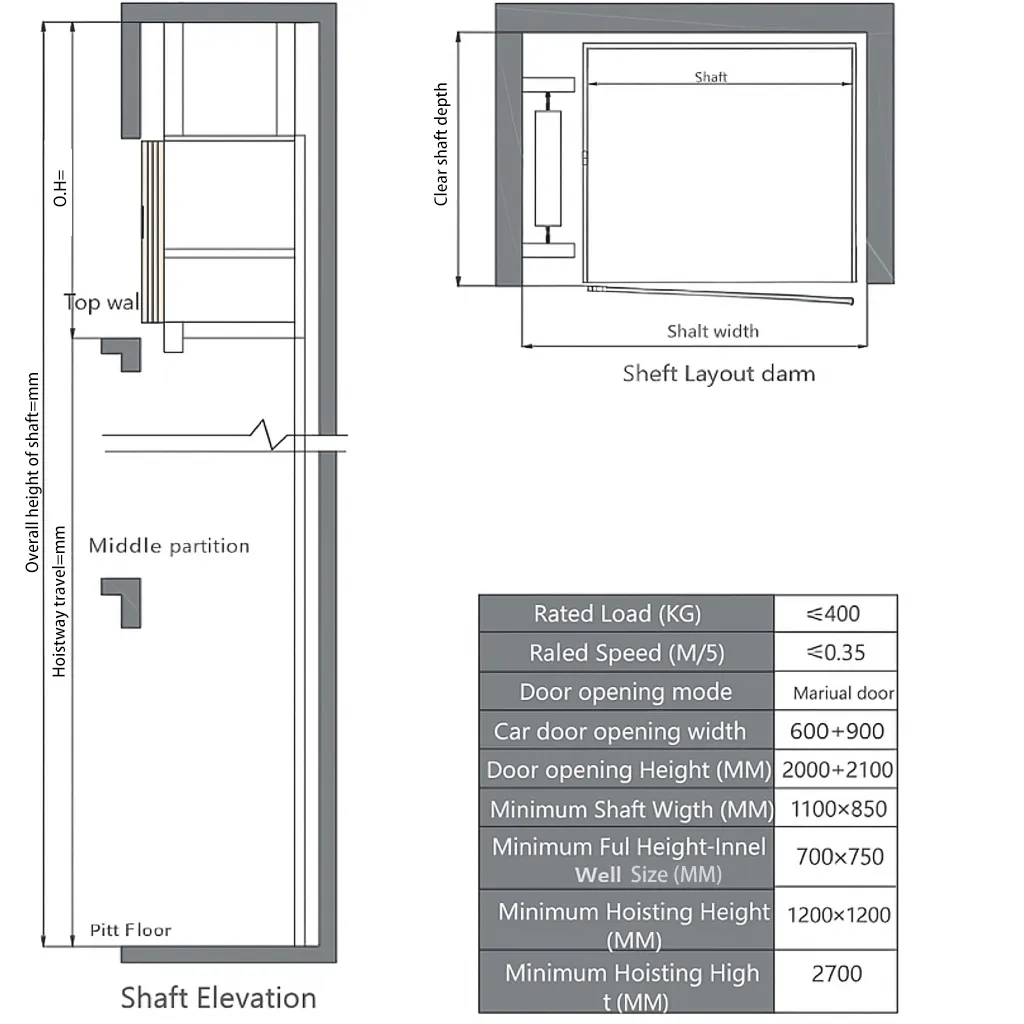

Size

(1)Minimum Customized Size100*1100mm

(2)Minimum Top-level Height2600 mm

(3) Mininum Pit height 150mm

Equipment Maintenance and Care

– Add some lubricating oil between the corresponding moving parts to extend the service life of the bearings.

– Check monthly whether the hydraulic pipe joints and fasteners are loose, and tighten them in a timely manner if looseness is found.

– For long – term disuse (more than 1 month), conduct inspections and no – load tests before use.

– Clean the suction filter of the oil pump and the filter of the solenoid valve every six months.

– When replacing or repairing hydraulic components, clean the surroundings of the equipment, clean and blow dry the components, and temporarily block the oil inlet and outlet ports. Avoid bumping and damaging the components during the disassembly and assembly process, and strictly prevent dust, solid particles and water from entering the hydraulic oil circuit system.

– Check the quality and level of the hydraulic oil. When the car is lifted, the hydraulic oil level should be 40 – 50 mm higher than the fuel tank (When installed outdoors, use 46# hydraulic oil in summer and 32# hydraulic oil in winter).

– Regularly check the circuit and replace the aging or damaged wires in a timely manner.

– Check the landing door interlock device monthly to ensure that the landing door cannot be opened when the elevator car is not at the floor.

The material of the Traction Gantry Frame Type Home Villa Elevator

Steel Structural Cross-Section

The Characteristics of Steel Structure Shaft Frame

It offers high cost-effectiveness. The Exterior anel will be subsequently sealed and integrated with the design style by the decoration unit. The installation position can be treely chosen, and the surface is sprayed with rust-resistant treatment, being resistant to corrosion.

High-Level Spray-Painted Steel Frame Construction

Aluminum alloy cross section

The Characteristics of Aluminum Alloy Cross-Section

An independent frameless glass design does not add to the building cost. It features excellent light transmittance and seamless integration with indoor decoration. The installation location can be freely chosen. It is corrosion-resistant and has a long service life. Industrial grade aluminum alloy is chosen, and the glass is made

Hight-Level Spary-Painted Aluminum Alloy Frame Construction

Protective Device Eliminate Hidden Safety Hazards

Single-touch dialing

Theelevatorisfurmishedwithasingletouchdialingfunction,whichtriggerstheintelligentsingle-touch dialingmoduleasperyoursettings,enablingittodialthenumberssuccessivelyinaccordancewithyour configuration.

ARD (Automatic Rescuer Device)

When the external power supply of the elevator is abnormal,it is capable of automatically detecting and activating the backup power supply,gradually moving the elevator car to the nearest floor and then opening the elevator door to safely release the passengers.

Automatic Lighting System

HomeHome serles villa elevators is equlpped with auto- matic lighting function,when not in usethe liahting automat- icaly turns off the car,received any call instruction automati- cally open,fully reduce power consumption in order to effec- tively reduce your living cost.

Protective apparatus

Platform Villa Elevator

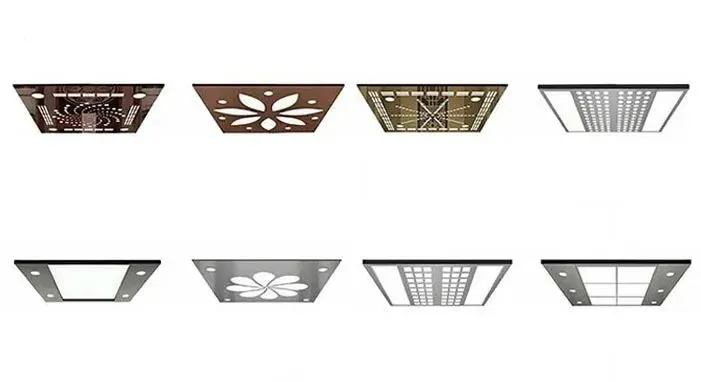

Ceiling Series

Our traction elevator ceiling options combine ambient lighting, modern aesthetics, and artistic starry sky patterns. Each residential elevator ceiling design features soft LED luminous panels and immersive lighting effects, transforming your home elevator ride into an elegant sensory experience. Ideal for electric traction elevators used in villas or high-end residences, these designs enhance vertical space perception and reflect luxury living.

Floor Series

Inspired by oriental and modern design, our traction lift floor panels blend marble textures with ink-style landscape art. These anti-slip, durable panels ensure safety while creating a calm and elegant atmosphere inside the electric traction elevator. Perfect for villas and luxury homes, the home elevator floor becomes a visual highlight as much as a functional element.

Start Our First Collaboration - Your Custom Home Elevator Solution, Delivered in 3 Business Days

Why Choose Us?

With 10,000+ satisfied customers worldwide and 10+ international certifications, we guarantee top-tier quality and reliability for every project. Our commitment includes:

✓ 10+ Industry Certifications (CE, ASME, ISO, etc.) – Ensuring compliance and safety

✓ 10,000+ Successful Installations – Trusted by homeowners & developers globally

✓ End-to-End Support – From design to installation, backed by a dedicated project team

✓ Tailored Solutions – Customizable for luxury villas, aging-in-place homes & smart residences
