Backpack Vlaladder Side Mounted

ARD(automatic rescuer device) To prevent people from being trapped in elevators due to unexpected power outages,an ARD(automatic rescuer device)can ensure that passengers are safely taken to the nearest floor level after a sudden power failure.
The traction series of residential elevators for villa are equipped with an automatic lighting function. When the cabin is not in use,the lighting turns off automatically and turns on when receiving any call instructions,saving energy consumption fully and reducing your living costs effectively.
The Intemet of Things (loT)is regarded as the extension of the Intemet.Application innovation is the core of loT development,and user-centered innovation is its soul.The traction drive series elevator can also connect elevators to the Internet via loT platform,exchange information and communicate to achieve intelligent identification,positioning,tracking,monitoring and management of elevators.
The fixed telephone function enables dialing calls via the control box’s numeric keys to any mobile or landline,improving emergency rescue reliability.

Product Introduction

The Backpack Villa Elevator with a side-mounted traction system offers a compact, space-saving solution tailored for residential elevator applications. Featuring a backpack-type traction elevator structure, the driving and guiding systems are integrated on one side of the shaft, which reduces construction space usage and simplifies installation.

This electric traction lift is powered by a gearless traction elevator system, ensuring smoother, quieter, and more energy-efficient vertical transport. The side-mounted design allows greater flexibility in shaft layout and supports installations along walls or in corners, making it an ideal solution for villa elevators, duplex homes, and low-rise residential buildings with limited space or structural restrictions.

Unique features make our products unique

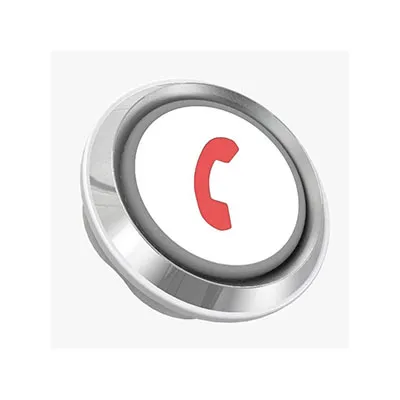

One-button call

Our residential traction elevator features an emergency one-button call system, allowing users to press a single button on the control box to send alerts to multiple pre-set numbers. This fast-response feature enhances safety in electric traction elevators installed in villas and low-rise homes.

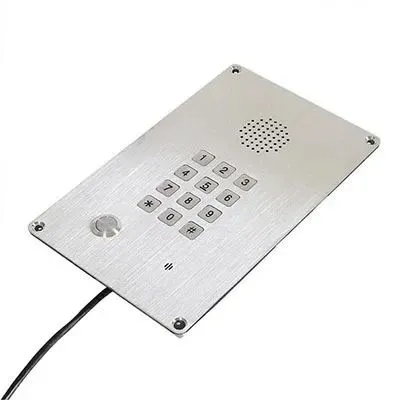

Fixed telephone device

The villa elevator is equipped with a built-in fixed telephone device, enabling direct dialing to mobile or landlines via numeric keys on the control box. This ensures reliable emergency elevator communication in case of power failure or other unexpected situations.

Customer First Quality-Oriented

We are committed to providing personalized home elevator solutions that meet the highest quality standards. Our traction lift systems are engineered to deliver safe, reliable, and energy-efficient operation for modern villas and residential spaces.

Unique features make our products unique

Go for customization

Get the latest product information

PDF Sample Download

Our products can be installed in the following five building structures

The building has a special elevator well The elevator can be installed directly with in it

Suitable space in the midde of the staircase Install elevators in the middie of the shaft

A hoilow half or room Instalation of elevators in halls orrooms

The elevator with suitable space in the building can only be installed indoors. Installation of elevators by opaning appropriate holes in the floor and installing well paths

There is no suitable space in the building If permitted,install elevators with wells saliva in each room

Tips

On occasions②③④⑤ the installation of an elevator shaft specifically designed is required. Customers can utilize metal frames or concrete, etc. to build the shaft in advance. We recommend that customers opt for a special frame shaft for villa elevators.

Size

(1)Minimum Customized Size100*1100mm

(2)Minimum Top-level Height2600 mm

(3) Mininum Pit height 150mm

Equipment Maintenance and Care

– Add some lubricating oil between the corresponding moving parts to extend the service life of the bearings.

– Check monthly whether the hydraulic pipe joints and fasteners are loose, and tighten them in a timely manner if looseness is found.

– For long – term disuse (more than 1 month), conduct inspections and no – load tests before use.

– Clean the suction filter of the oil pump and the filter of the solenoid valve every six months.

– When replacing or repairing hydraulic components, clean the surroundings of the equipment, clean and blow dry the components, and temporarily block the oil inlet and outlet ports. Avoid bumping and damaging the components during the disassembly and assembly process, and strictly prevent dust, solid particles and water from entering the hydraulic oil circuit system.

– Check the quality and level of the hydraulic oil. When the car is lifted, the hydraulic oil level should be 40 – 50 mm higher than the fuel tank (When installed outdoors, use 46# hydraulic oil in summer and 32# hydraulic oil in winter).

– Regularly check the circuit and replace the aging or damaged wires in a timely manner.

– Check the landing door interlock device monthly to ensure that the landing door cannot be opened when the elevator car is not at the floor.

The material of the Backpack vlaladder side mounted

Steel Structural Cross-Section

The Characteristics of Steel Structure Shaft Frame

It offers high cost-effectiveness. The Exterior anel will be subsequently sealed and integrated with the design style by the decoration unit. The installation position can be treely chosen, and the surface is sprayed with rust-resistant treatment, being resistant to corrosion.

High-Level Spray-Painted Steel Frame Construction

Color

Traction Gantry Frame Type Home Villa Elevator

Aluminum alloy cross section

The Characteristics of Aluminum Alloy Cross-Section

An independent frameless glass design does not add to the building cost. It features excellent light transmittance and seamless integration with indoor decoration. The installation location can be freely chosen. It is corrosion-resistant and has a long service life. Industrial grade aluminum alloy is chosen, and the glass is made

Hight-Level Spary-Painted Aluminum Alloy Frame Construction

Color

Protective Device Eliminate Hidden Safety Hazards

Single-touch dialing

This residential traction elevator features a single-touch dialing system that quickly connects to preset emergency numbers—ideal for villa elevator safety.

ARD (Automatic Rescuer Device)

The electric traction elevator includes an ARD system that activates during power outages, moving the lift to the nearest floor and opening the door for safe exit—perfect for home elevator applications.

Protective apparatus

ARD (Automatic Rescuer Device)

Push button call box

Our residential elevator call boxes feature smart push-button designs, ideal for villa elevators, home lifts, and traction elevator systems. Users can choose from various panel styles—touch screen, mechanical, or digital—based on installation layout and control preferences. We also offer custom elevator call panels tailored to user needs, ensuring seamless integration with your home elevator system.

Floor Series

The Floor Series for villa elevators and residential lifts combines oriental elegance with modern durability. Available in marble, medallion, and ink-style patterns, each elevator floor panel is both slip-resistant and visually captivating. Ideal for luxury home elevators, these panels enhance both safety and aesthetics, offering a perfect match for high-end traction lift interiors.

Start Our First Collaboration - Your Custom Home Elevator Solution, Delivered in 3 Business Days

Why Choose Us?

With 10,000+ satisfied customers worldwide and 10+ international certifications, we guarantee top-tier quality and reliability for every project. Our commitment includes:

✓ 10+ Industry Certifications (CE, ASME, ISO, etc.) – Ensuring compliance and safety

✓ 10,000+ Successful Installations – Trusted by homeowners & developers globally

✓ End-to-End Support – From design to installation, backed by a dedicated project team

✓ Tailored Solutions – Customizable for luxury villas, aging-in-place homes & smart residences
